CEMENT TEST MOULDS

Moulds feature removable partitions, base and end plates.

Effective gauge  length is measured from inside end of the studs.

Moulds produce cement prism specimens 11.25″ long.

Including studs, outside to outside length of specimen is 11.625″. ASTM C806.

Prism Moulds for Autoclave Expansion of Portland Cement – Autoclave  expansion of Portland cement; length change of mortar and concrete;

potentialalkali reactivity of cement/aggregate combinations; linear change of  magnesium and oxychloride cements; volume change of cement paste.

ASTM C1260, ASTM C151, ASTM C157, ASTM C227, ASTM C342, ASTM C441, ASTM C452, ASTM C490, ASTM C596.

Prism Moulds for Volume Change Tests – Application is primarily for volume change tests. ASTM C878.

TYPE OF CEMENT MOULDS

STANDARD : ASTM C806

Designed to produce required 10″ effective gauge length, prism test bars.

Moulds feature removable partitions, base and end plates.

Effective gauge length is measured from inside end of the studs.

Moulds produce cement prism specimens 11.25″ long.

Including studs, outside to outside length of specimen is 11.625″.

Prism Test Bar Mould

PRS-CM0033-2-2  :  2″ x 2″ x 10″ (51 x 51 x 254mm), 2-mold, cold-rolled steel

Cement Prism Mould

PRS-CM0033-2-2/1 : 1″ x 1″ x 5″ (25 x 25 x 127mm), 2-mold, cold-rolled steel

STANDARDS : ASTM C1260, ASTM C151, ASTM C157, ASTM C227, ASTM C342, ASTM C441,ASTM C452, ASTM C490, ASTM C596

Designed to produce required 10″ effective gauge length, prism test bars.

Moulds feature removable partitions, base and end plates.

Effective gauge length is measured from inside end of the studs.

Moulds produce cement prism specimens 11.25″ long.

Including studs, outside to outside length of specimen is 11.625″.

Application: Autoclave expansion of Portland cement; length change of

mortar and concrete; potential alkali reactivity of cement/aggregate

combinations; linear change of magnesium and oxychloride cements; volume

change of cement paste

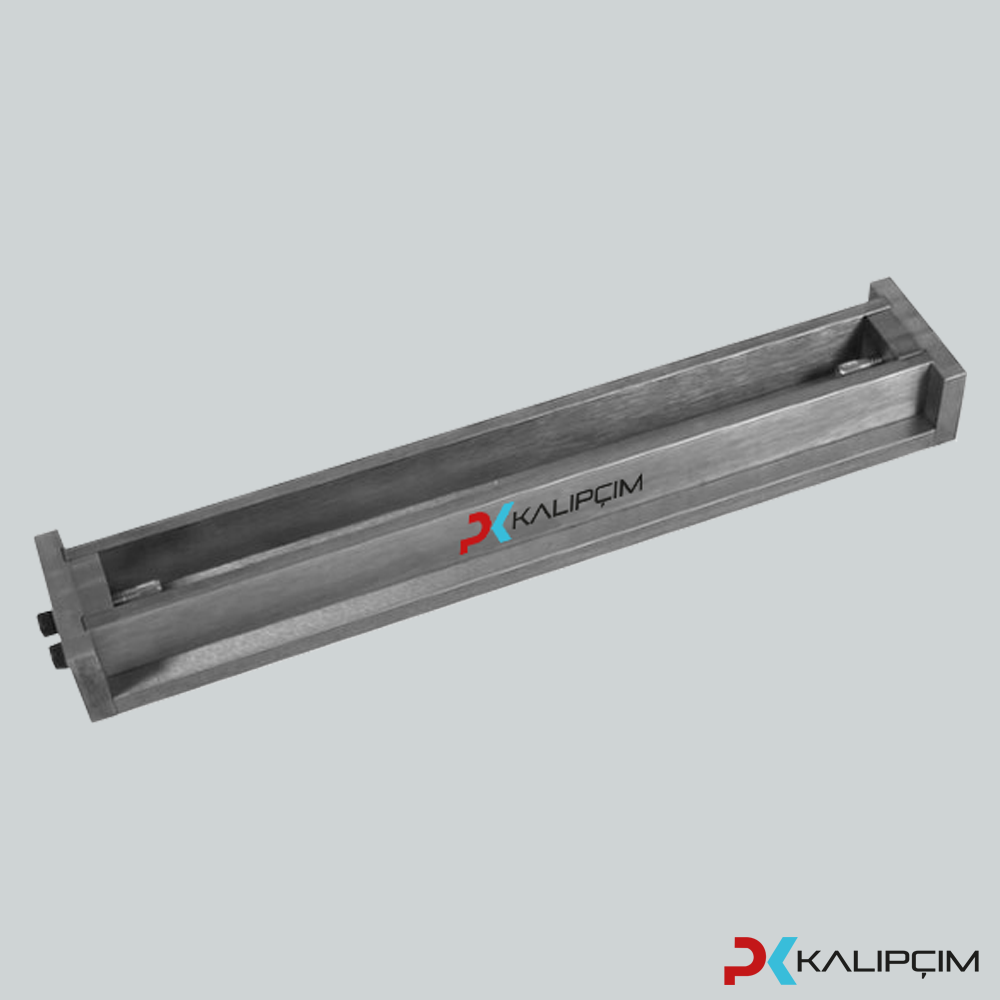

Cement Prism Mould

PK – PM01 : 1″ x 1″ x 10″, ( 25 x 25 x 254mm), Onegang

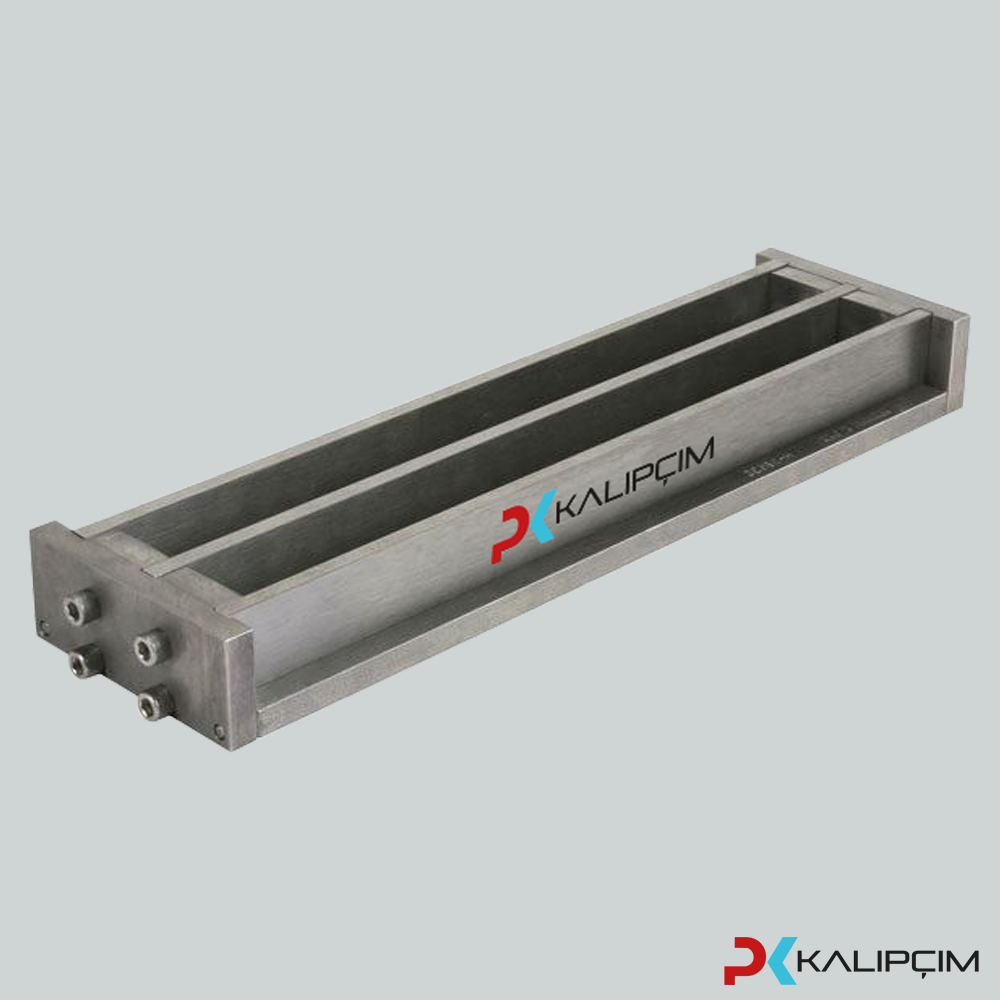

Cement Prism Mould

PK – PM02 : 1″ x 1″ x 10″, (25 x 25 x 254mm), Twogang

Cement Prism Mould ( Stainless Steel )

PK – PMS02 : 1″ x 1″ x 10″, (25 x 25 x 254mm), Twogang

Cement Prism Mould ( Stainless Steel )

PK – PMS03 : 1″ x 1″ x 5″, (25 x 25 x 127mm), Twogang

STANDARD : ASTM C878

Designed to produce required 10″ effective gauge length, prism test bars.

Moulds feature removable partitions, base and end plates.

Effective gauge length is measured from inside end of the studs.

Moulds produce cement prism specimens 11.25″ long.

Including studs, outside to outside length of specimen is 11.625″.

Application: Volume Change Tests

Cement Prism Mould

PK -PM03 : 3″ x 3′ x 10′, (76 X 76 X 254mm)

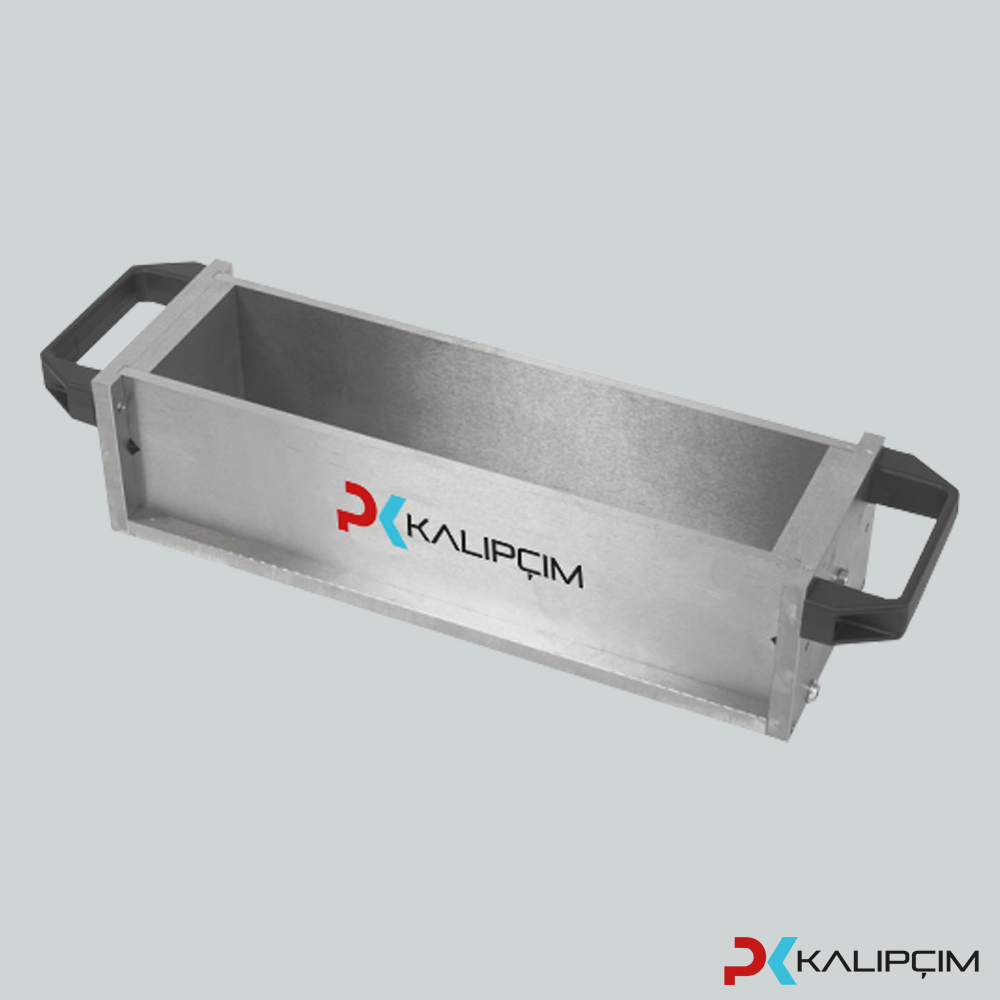

Cement Prism Mould

PK -PM04 : 4″ x 4″ x 10″, (102 x 102 x 254mm), Onegang

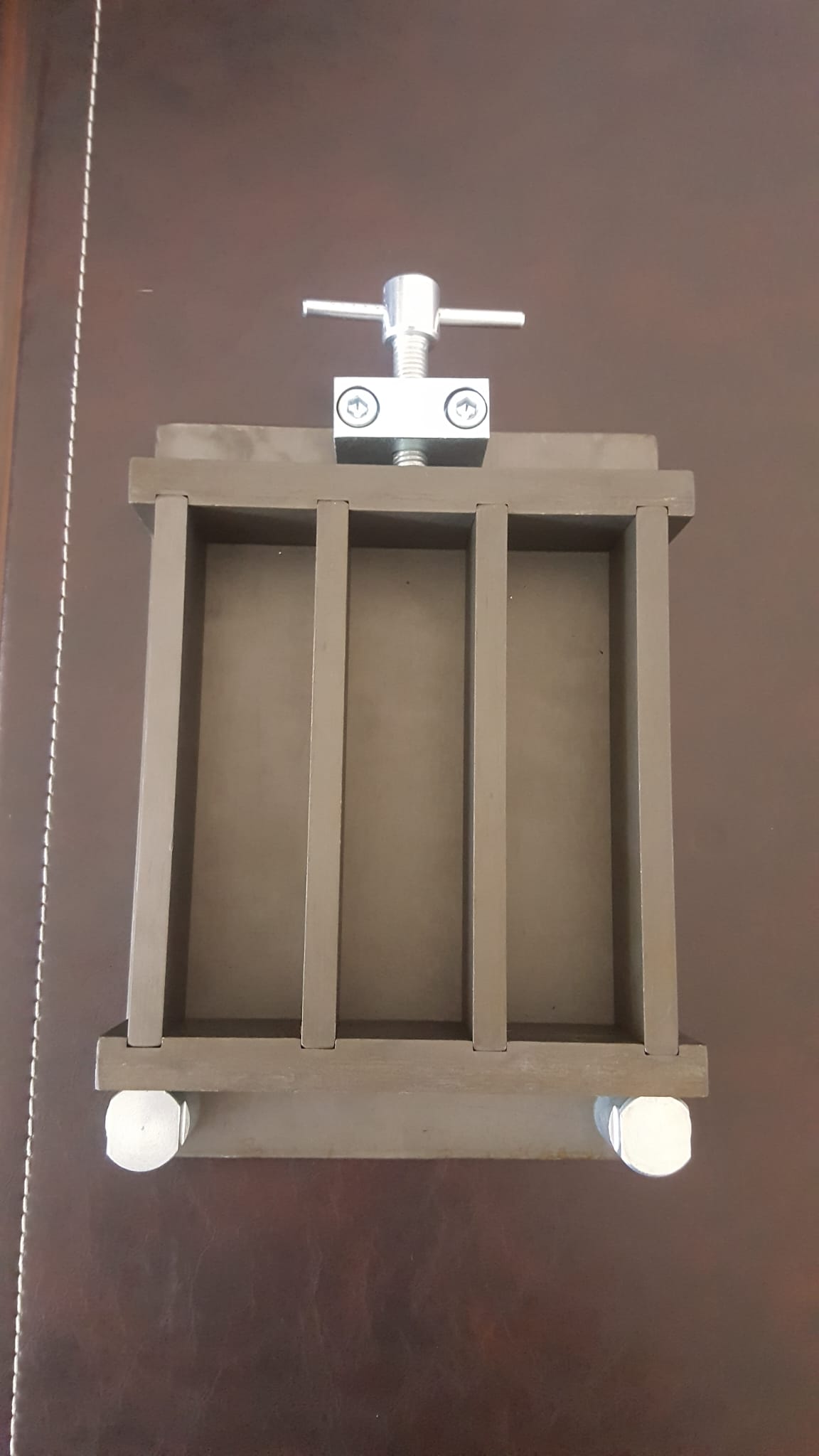

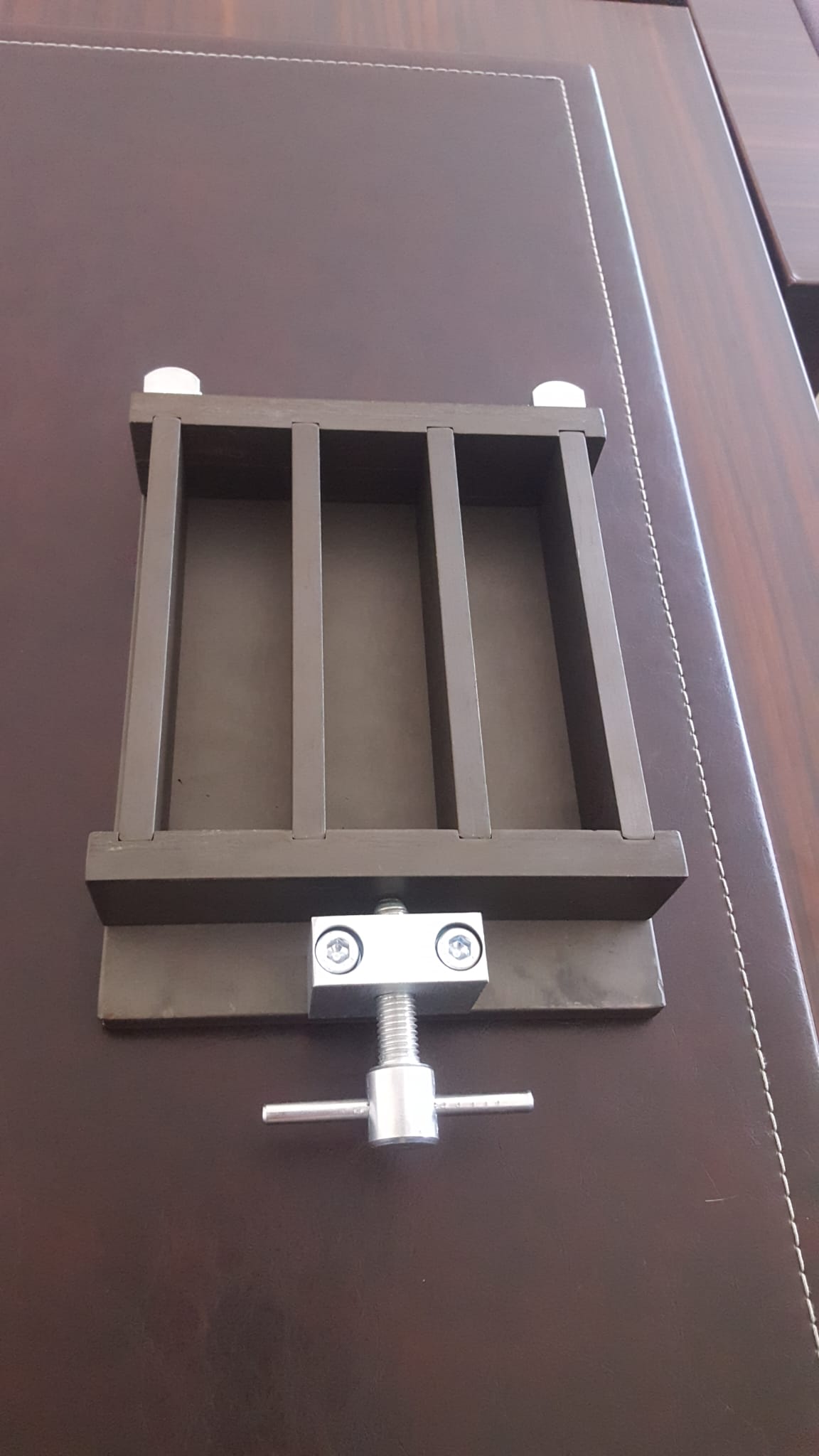

Cement Prism Test Bar Mould

PK -PM05 :  1.6″ x 1.6″ x 6.3″, (40 x 40 x 160mm), Threegang

STANDARDS

ASTM C1260, ASTM C151, ASTM C157, ASTM C227, ASTM C341, ASTM C342,

ASTM C441, ASTM C452, ASTM C490, ASTM C596, AASHTO M210, AASHTO

T107

Gauge Studs have stainless steel contact points and are knurled and threaded

for use with cement prism molds.

Packaged 12 per bag.
