SOIL COMPACTION MOULDS

Compaction moulds are used for soil compaction testing. These rugged proctor moulds comply with numerous test specifications including the Proctor Compaction Test, California Bearing Ratio (CBR), and Limerock Bearing Ratio (LBR) tests.

Moulds are constructed of clear plated steel for maximum rust resistance. Compaction moulds are available as complete sets or sold as individual components.

For the extrusion of soil specimens from the mould, the Universal Specimen Extruder may be used.

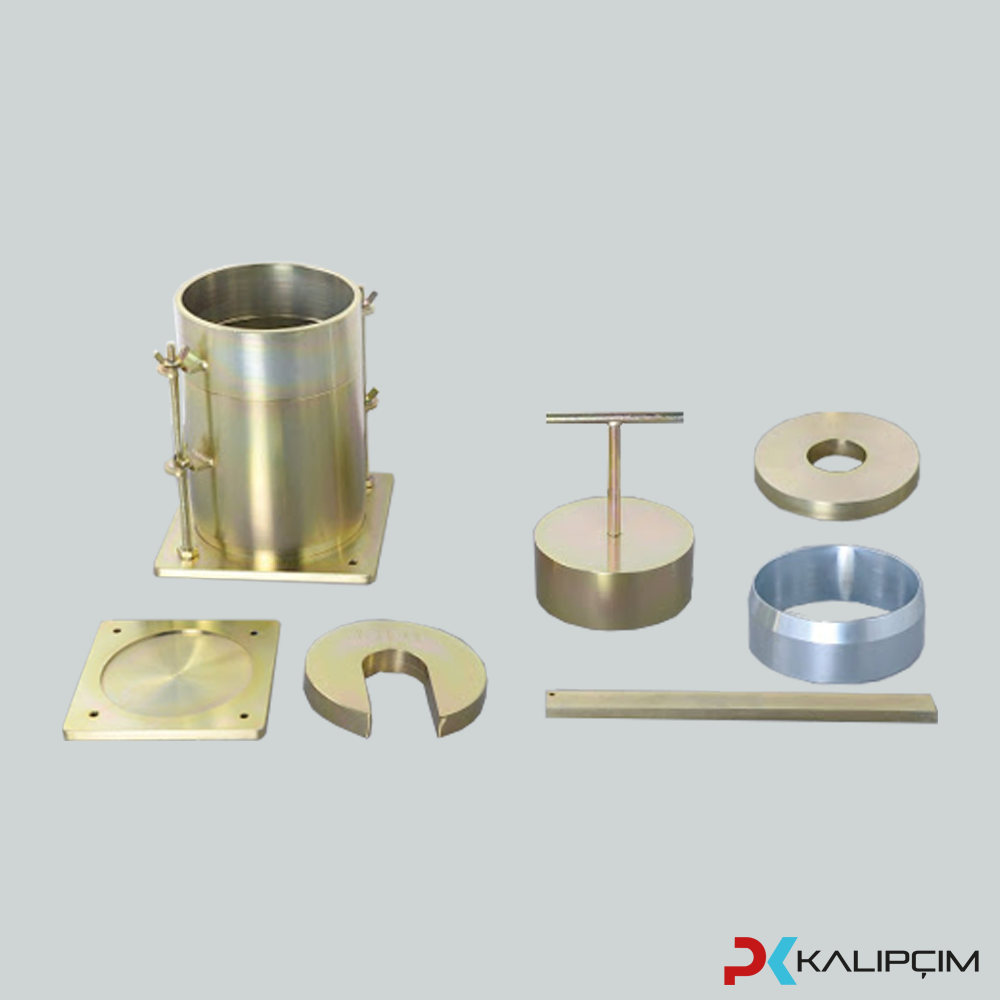

CBR MOULDS & ACCESSORIES

The CBR – California Bearing Ratio – method is used for the laboratory evaluation of subgrade and subbase coarse materials in road construction.

The apparatus comprises moulds with accessories, compaction rammers (the automatic models are the same used for the compaction of Proctor moulds).

*** Different models are available conforming to the various specifications in use.

 STANDARDS :EN 13286-47

Each accessories listed below should be ordered separately.

Product Code

 Description Dimensions

Weight (approx.)
PRS-SCBM 62/EN

B type Proctor Compaction Mould EN (modified), internal dia.: 150±1 mm,

internal height: 120±1 mm, supplied complete with extension collar and solid base plate

200x200x180 mm

8.9 kg
PRS-SCBM 78/EN Annular Surcharge Weight BS / EN, 2 kg

200x200x100 mm

2.6 kg
PRS-SCBM 70/EN Split Surcharge Weight BS / EN, 2 kg

200x200x100 mm

2.6 kg
PRS-SCBM 72/EN CBR Perforated Base Plate EN

200x200x100 mm

2 kg
PRS-SCBM 76/EN Filter papers for CBR test, coarse, 148 mm dia.

200x200x20 mm

0.1 kg
PRS-SCBM 74/74 Straightedge 300x30x5 mm

300x30x5 mm

1 kg

STANDARDS : BS 1377:4, 1924:2; EN 13286-4



        Each accessories listed below should be ordered separately.



Product Code Description Dimensions Weight (approx.)
PRS-SCBM 0750/ BS (*) CBR Type Mould BS (modified proctor) / Vibrating Hammer Mould EN, internal dia.: 152 mm, internal height: 127mm, supplied complete with extension collar and solid base plate



200x200x450 mm

8.5 kg
PRS-SCBM0755 /BS Compaction plug with T handle BS, 150 mm dia. x 50 mm height

200x200x300 mm

7.5 kg
PRS-SCBM 0758 / BS Annular Surcharge Weight BS/EN, 2 kg

200x200x100 mm

2.6 kg
PRS-SCBM 0760 / BS Split Surcharge Weight BS/EN, 2 kg

200x200x100 mm

2.6 kg
PRS-SCBM 0762/ BS CBR Perforated Base Plate BS

200x200x100 mm

2 kg
PRS-SCBM 0764 / BS Filter Paper for CBR Test No:1 x 150 mm dia. BS (Pack of 100)

200x200x20 mm

0.1 kg
PRS-SCBM 0768 / BS C- Spanner

200x300x100 mm

1 kg
PRS-SCBM 0770 / BS Assembly tool for Base Plate

350x30x15 mm

1 kg

STANDARDS : ASTM D1883; AASHTO T193



Each accessories listed below should be ordered separately.



Product Code Description Dimensions Weight (approx.)
PRS-SCBM900/ASTM CBR Mould ASTM / AASHTO, plated steel mould body with 6″ (152.4 mm) dia. x 7″ (177.8 mm) height, supplied complete with extension collar and perforated base plate

200x200x450 mm

8.5 kg
PRS-SCBM905/ASTM Spacer Disc with T handle ASTM, 150.8 mm dia. x 61.4 mm height”

200x200x300 mm

7.5 kg
PRS-SCBM908/ASTM Annular Surcharge Weight ASTM, 2.27 kg

200x200x100 mm

2.3 kg
PRS-SCBM910/ASTM Slotted Surcharge Weight ASTM, 2.27 kg

200x200x100 mm

2.3 kg
PRS-SCBM912/ASTM CBR Solid Base Plate ASTM

200x200x100 mm

2.1 kg
PRS-SCBM914/ASTM Straightedge 300x30x5 mm

300x30x5 mm

1 kg
PRS-SCBM916/ASTM Filter Paper for CBR Test No:5 x 150 mm dia. ASTM (Pack of 100)

200x200x20 mm

0.1 kg
PRS-SCBM918/ASTM Filter screen, 144 mm dia. 150 μm mesh ASTM

150x150x20 mm

1 kg

STANDARDS : NF P 94-078 (Alternative)

Cbr Moulds  & Accessories are used for the laboratories of road subfloor and sub-base course materials.

Each accessories listed below should be ordered separately.

Product Code

 Description Dimensions

Weight
PRS-SCBM401/NF Modified Proctor /CBR Type Mould, NF, Ø152 mm. Supplied complete with extension collar and solid base plate

160x160x200 mm

15 kg
PRS-SCBM403/NF Split Modified  Proctor /CBR Type Mould, NF, Ø152 mm.Supplied complete with extension collar and solid base plate

160x160x200 mm

15 kg
PRS-SCBM405/NF Spacer Disc with T handle, NF, Ø151mm, 36 mm height.

150x150x250 mm

9 kg
PRS-SCBM910/NF Annular Surcharge Weight, NF

150x150x100 mm

2,30 kg
PRS-SCBM 0766/NF Split Surcharge Weight, NF

150x150x100 mm

2,30 kg
PRS-SCBM 0762/NF CBR Perforated Base Plate, NF

200x200x50 mm

3 kg
PRS-SCBM915/NF Straightedge

300x30x10 mm

0,30 kg
PRS-SCBM405/NF Cutting Collar

00x100x100 mm

0,50 kg
PRS-SCBM917/NF Filter papers for CBR test,  No:1x Ø152,4 mm (Pack of 100).

160x160x30 mm

0,20 kg

STANDARDS : AS 1289.6.1.1

Cbr Moulds  & Accessories are used for the laboratories of road subfloor and sub-base course materials.

CBR Molds and Accessories are generally manufactured  by our company according to ASTM, BS, AS, EN, NF Standards.

Each accessories listed below should be ordered separately.



Product Code

 Description Dimensions

Weight
PRS-SCBM 501 / AS

CBR Mould AS.

Ø152 mm.Supplied complete with extension collar and perforated  base plate

200x200x240 mm

8 kg
PRS-SCBM 503 / AS

Split CBR Mould AS

Ø152 mm. Supplied complete with extension collar and perforated  base plate

200x200x240 mm

8 kg
PRS-SCBM 505 / AS Spacer Disc with T handle, NF, Ø150mm, 61 mm height.

150x150x170 mm

5 kg
PRS-SCBM 508 / AS Annular Surcharge Weight, AS

150x150x20 mm

2,25 kg
PRS-SCBM 510 / AS Slotted Surcharge Weight, AS

150x150x20 mm

2,25 kg
PRS-SCBM 517 / AS CBR Soak Weight, AS

160x160x50 mm

4,50 kg
PRS-SCBM915/AS Straightedge

300x30x10 mm

0,30 kg
PRS-SCBM917 /AS Filter papers for CBR test, No:1x Ø152,4 mm (Pack of 100).

160x160x30

0,20 kg

Anim pariatur cliche reprehenderit, enim eiusmod high life accusamus terry richardson ad im keffiyeh helvetica, craft beer labore wes anderson cred nesciunt sapiente ea proident. Ad vegan excepteur butcher vice lomo labore sustainable VHS.

PROCTOR MOULD & RAMMERS

Product Code Product Description
PRS-SPRMR60 Standard Proctor Mould, ASTM
PRS-SPRMR62 Standard Proctor Compaction Rammer,ASTM
PRS-SPRMR64 Modified Proctor Mould, ASTM
PRS-SPRMR66 Modified Proctor Compaction Rammer, ASTM
PRS-SPRMR68 A Type Proctor Mould (Standard), EN
PRS-SPRMR681 Steel Plate for The End Layer Compaction  EN
PRS-SPRMR70 A Type Proctor Compaction Rammer (Low Energy-Standard), EN
PRS-SPRMR72 B Type Proctor Compaction Mould (Modified), EN
PRS-SPRMR72/1 Steel Plate for The End Layer Compaction , EN
PRS-SPRMR74 B Type Proctor Compaction Rammer (Medium Energy-Modified), EN
PRS-SPRMR75 1 Liter Mould (Standard Proctor), BS, TS 1900-1
PRS-SPRMR76 2.5 kg Compaction Rammer, BS
PRS-SPRMR50 CBR Type Mould, BS (Modified Proctor) Vibrating Hammer Mould BS, EN, TS 1900-1
PRS-SPRMR78 4.5 kg Compaction Rammer, BS



STANDARDS: ASTM D 698, D 1557, D 558 ; AASHTO T 99, T180, T 134 ; EN 12386-2, 13286-4 BS 1377:4,1924:2

Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil.

Made of plated steel, includes collar, mould body and base plate.

Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel.

Different models are available conforming to the relevant standards.



Product Code Product Description
PRS-SPRMR70 A Type Standard Proctor Compaction Rammer (Low Energy), EN



STANDARDS: EN 12386-2

A Type Standard Proctor Compaction  Moulds and Rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume

Weight
PRS-SPRMR70

50 ± 0.5

 305± 3 2500 ± 20

4.5
Product Code Product Description
PRS-SPRMR68 A Type  Standard Proctor Mould , EN



STANDARDS: EN 12386-2

A Type Standard Proctor Moulds and Rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume

Weight

PRS-SPRMR68

 100 ± 1 120± 1 942

5  kg
Product Code Product Description
PRS-SPRMR72 B Type Modified  Proctor Compaction Rammer (Medium  Energy), EN



STANDARDS: EN 12386-2

B Type Modified  Proctor Compaction  Moulds and Rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume

Weight

PRS-SPRMR72

 50 ± 0.5 457 ± 3 4500 ± 40

8
Product Code Product Description
PRS-ZE0612 B Type  Modified  Proctor Mould , EN



STANDARDS: EN 12386-2

B Type Modified  Proctor Moulds and Rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume

Weight

PRS-ZE0612

 150 ± 1 120 ± 1 2120 8.9
Product Code Product Description
PRS-SPRMR66 Modified Proctor Compaction Rammer, ASTM



STANDARDS: ASTM D 698, D 1557, D 558 ; AASHTO T 99, T180, T 134

Modified  Proctor Mould and Rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Rammer  Dia Free Fall Height Mass of Rammer Weight

PRS-SPRMR66

 50.8 457 ± 1.3 4540 ± 10 g

8 kg
Product Code Product Description
PRS-SPRMR64 Modified Proctor Mould, ASTM



STANDARDS: ASTM D 698, D 1557, D 558 ; AASHTO T 99, T180, T 134

Modified Proctor Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume Weight

PRS-SPRMR64

 152.4 ± 0.7 mm 116.4 ± 0.5 mm 2124 ± 25 cm3

9 kg
Product Code Product Description
PRS-SPRMR76 Standard Proctor Compaction Rammer 2,5 kg  )  BS



STANDARDS: BS, TS 1900-1

Standard Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume

Weight

PRS-SPRMR76

 50 ± 0.5 300± 3 2500 ± 25

4.5
Product Code Product Description
PRS-SPRMR75 Standard Proctor Mould (1 Liter Mould )  BS, TS 1900-1



STANDARDS: BS, TS 1900-1

Standard Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume

Weight

PRS-SPRMR75

        105±0.5 115.5±0,5 1000

5
Product Code Product Description
PRS-SPRMR62 Standard Proctor Compaction Rammer



STANDARDS: ASTM D 698, D 1557, D 558 ; AASHTO T 99, T180, T 134

Standard Proctor Mould and Rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Rammer  Dia Free Fall Height Mass of Rammer

Weight

PRS-SPRMR62

 50.8 304.8± 1 2495 ± 23 g

4.5 kg
Product Code Product Description
PRS-SPRMR60 Standard Proctor Mould, ASTM



STANDARDS: ASTM D 698, D 1557, D 558 ; AASHTO T 99, T180, T 134

Moulds and rammers are used for determining the relationship between the moisture content and density of compacted soil. Made of plated steel, includes collar, mould body and base plate. Rammers are used to compact the soil sample in the Proctor Moulds and made of plated steel. Different models are available conforming to the relevant standards.



TECHNICAL SPECIFICATIONS

Product Code

 Internal Dia Body Height Volume

Weight

PRS-SPRMR60

 101.6 ± 0.4 mm 116.4 ± 0.5 mm 944.0 ± 14 mm cm3

7 kg
