Product description
| Product Code | Product Description |
| PRS-SDYCP | Dynamic Cone Penetrometer |
Dynamic Cone Penetrometer
STANDARDS : BS 1377:9
The PRS-SDYCP Dynamic Cone Penetrometer is used for the rapid, in situ measurement of structural properties of existing road pavement constructed with unbound materials.
it incorporates an 8 kg weight dropping through a height of 575 mm and 60° cone having a diameter of 20 mm. with the standard DCP measurements can be made
down to a depth of approximately 850 mm or when extension shafts are used to a recommended maximum depth of 2 m.
Readings are usually taken after a set number of blows, changing the number according to the strength of the layer being penetrated.
A typical test takes only a few minutes, therefore the instrument provides a very efficient method of obtaining information that would normally require the digging of test pits.
The penetration hammer assembly consists of 8 kg hammer, hammer shaft, anvil with plastic plate coupling for ruler and handle.

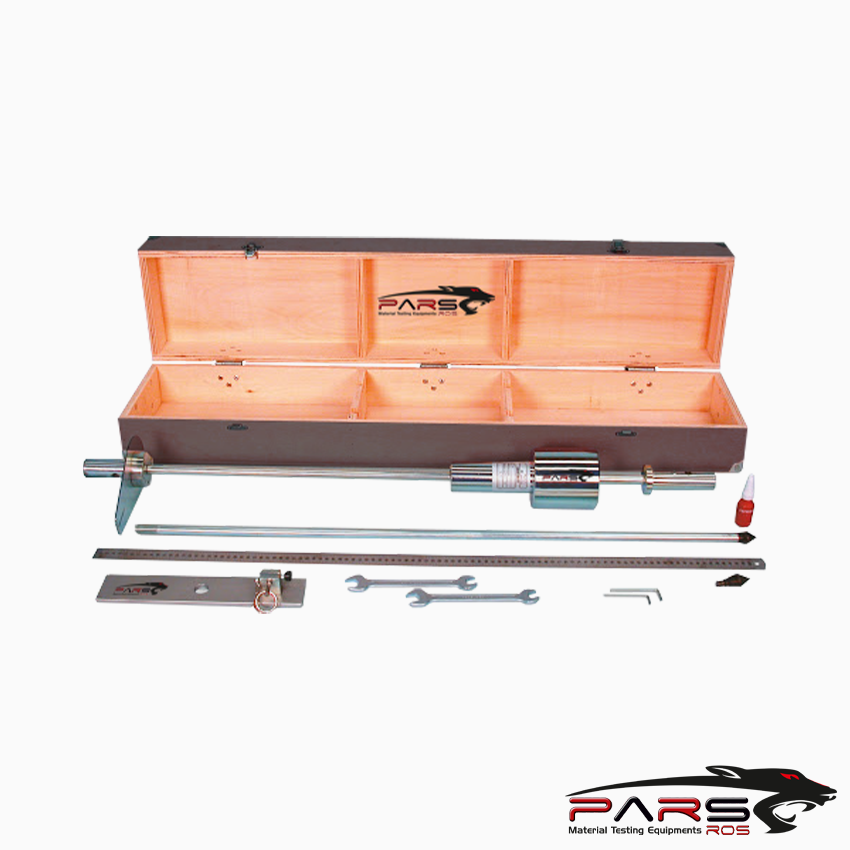

*** Dynamic Cone Penetrometer is supplied complete with;
A hammer assembly,
Penetration rod,
2 piece 60° cone,
Metal plate coupling for ruler,
Segmented adaptor for extension rods,
Segmented upper extension rod,
Segmented lower extension rod,
2 piece 13-17mm AF spanners,
3mm AF hex wrench,
Tommy bar,
A bottle of adhesive,10cc,
Steel ruler,
Carrying Case, heavy-duty wooden
TECHNICAL SPECIFICATIONS
| Dimensions | 1200x350x200 mm |
| Weight (approx.) | 30 kg |
