Product description
| Product Code | Product Description |
| PRS-GHCSS0310 | High Capacity Screen Shaker Time-Controlled, 220-240 V 50-60 Hz |
| PRS-GHCSS0310/110 | High Capacity Screen Shaker Time-Controlled, 110 V 60 Hz |
| PRS-GHCSS0315 | Pan |
| PRS-GHCSS0316 | Soundproof Safety Cabinet |

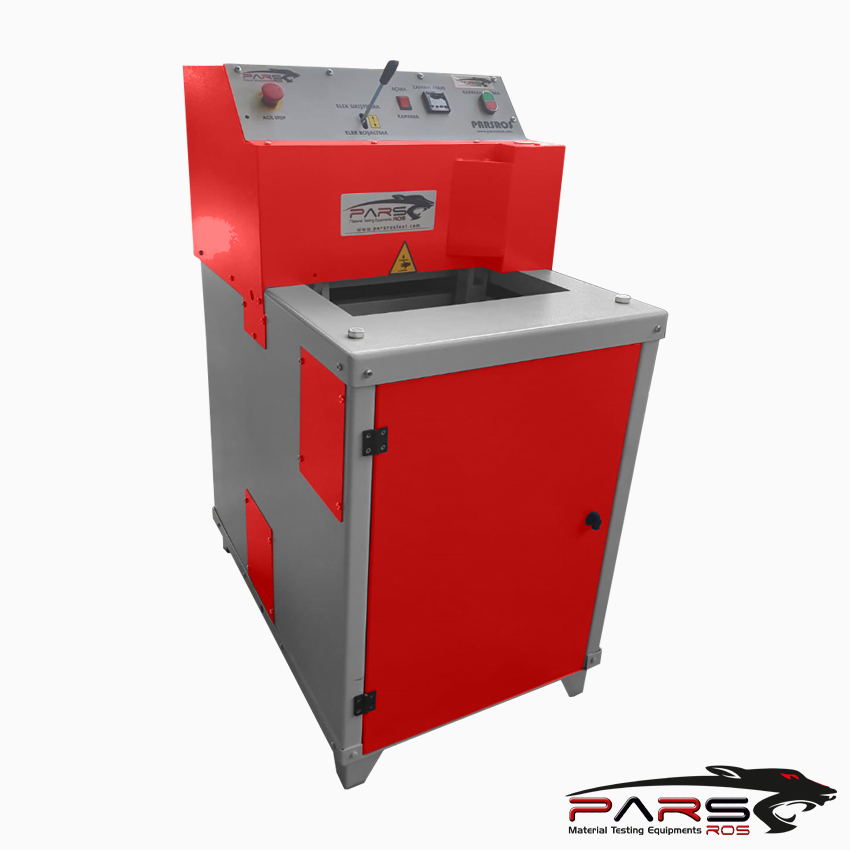

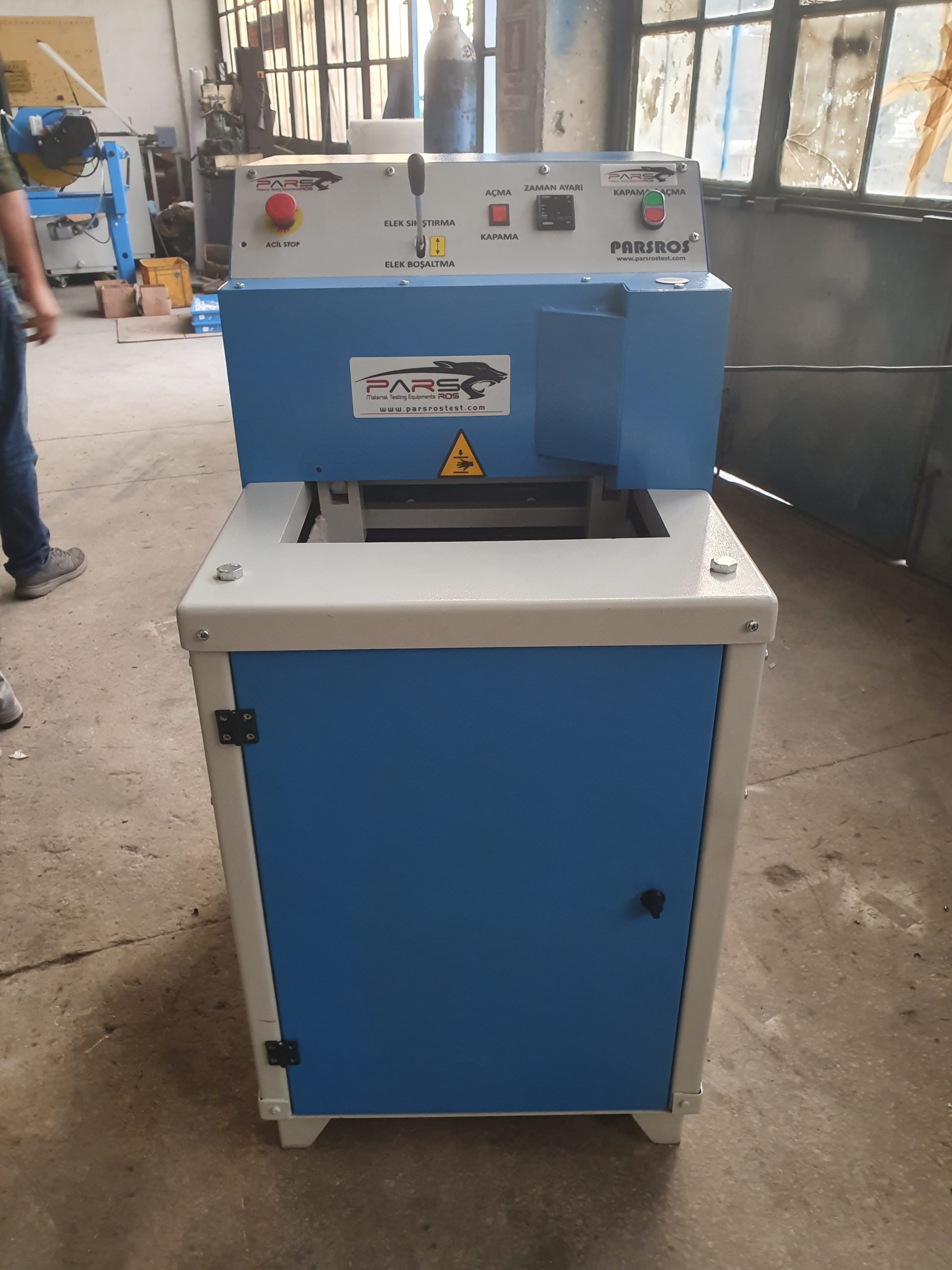

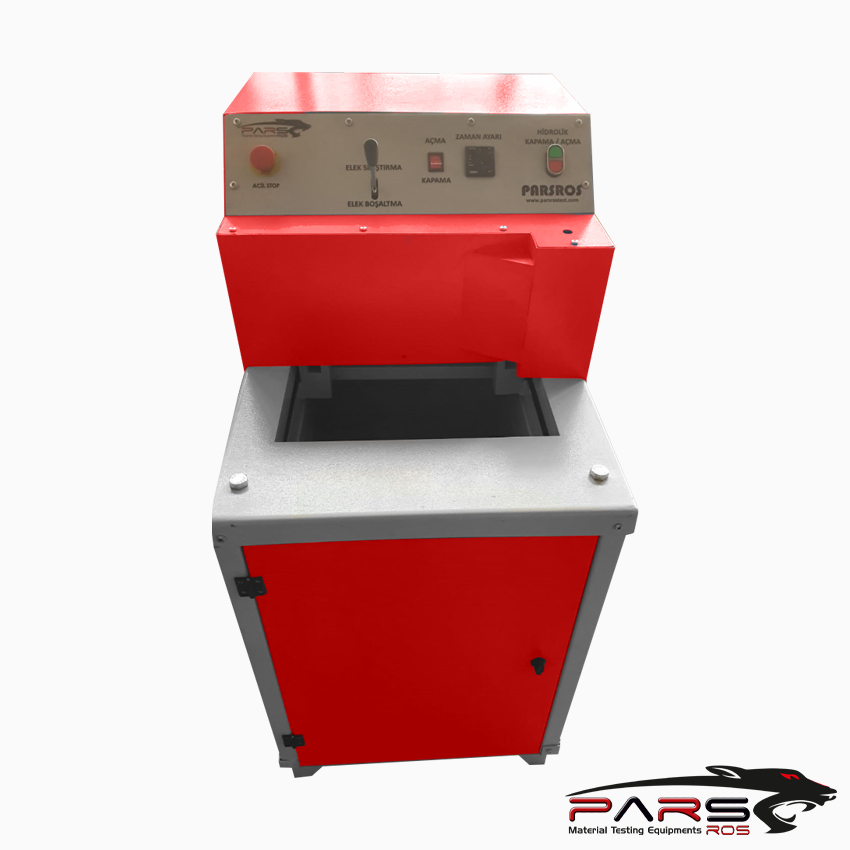

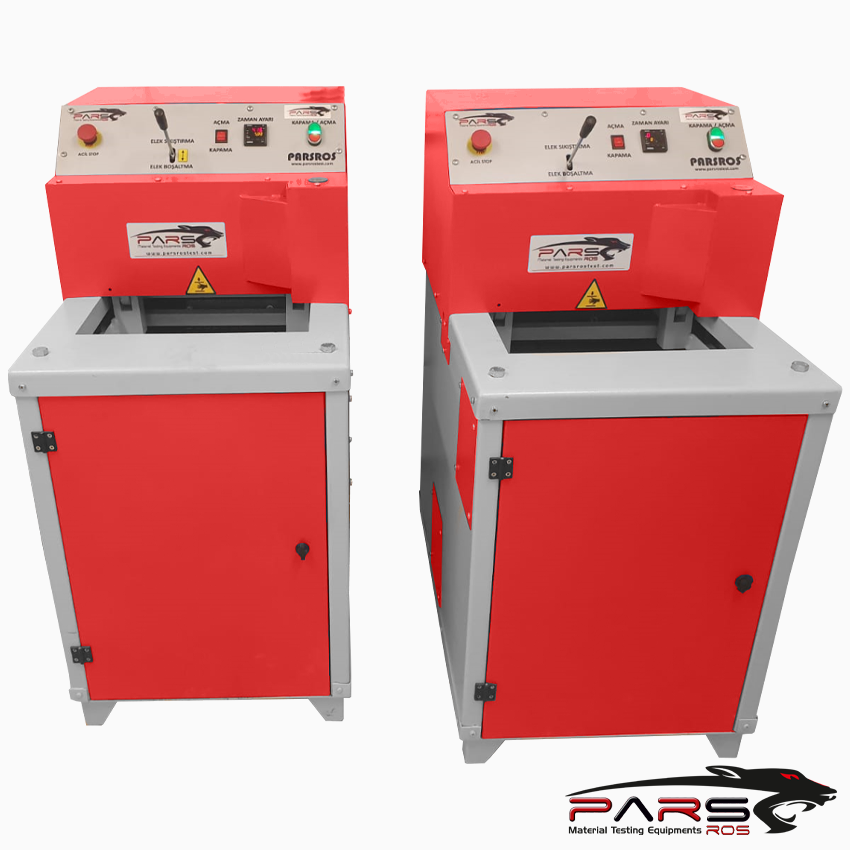

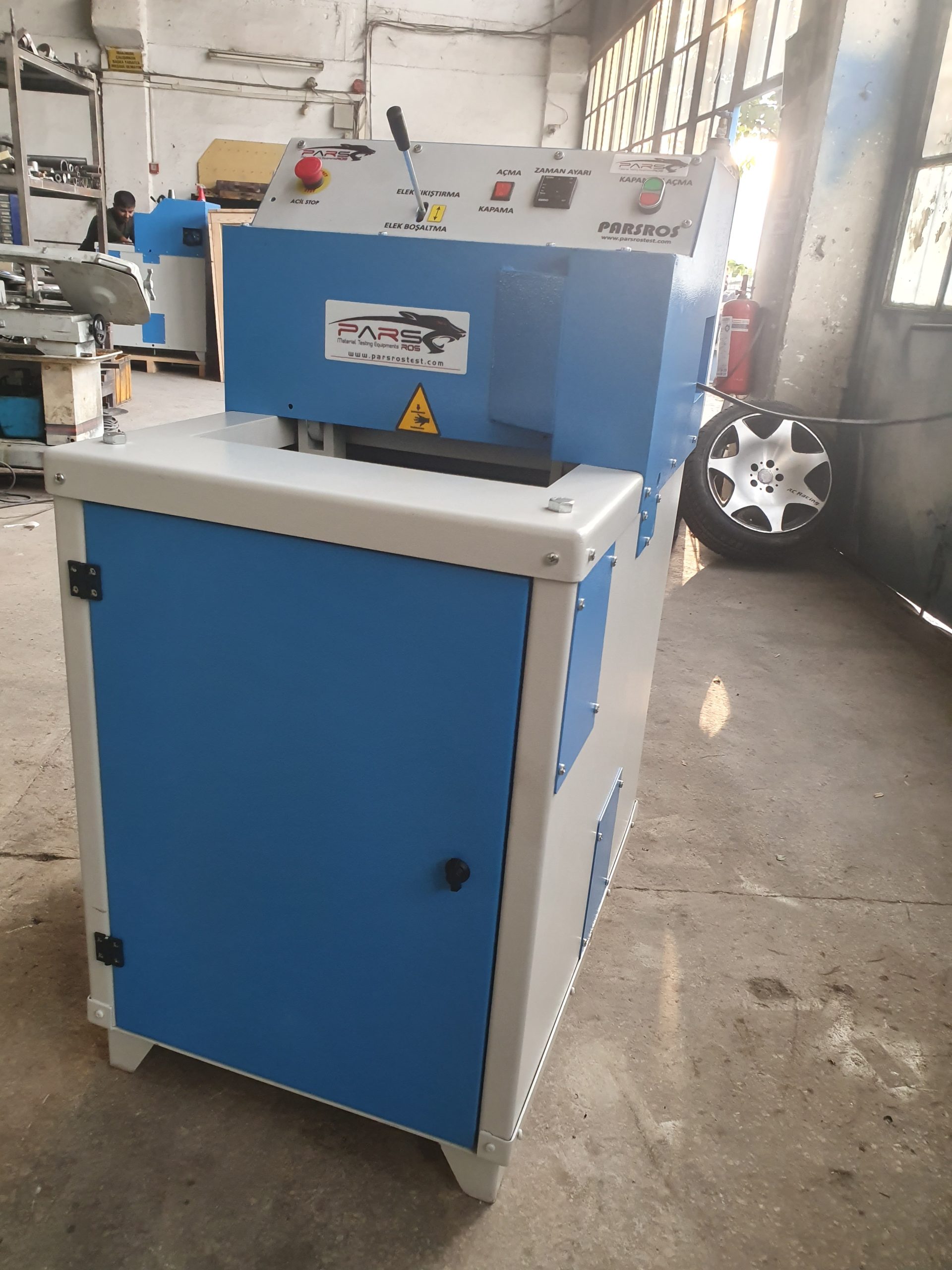

High Capacity Sieve Shaker
STANDARDS : EN 1339, 1367-1; TS 2824
High Capacity Sieve Shaker is ideal for sizing large quantities of crushed stones, sand, gravel, slag, coal, coke, ores, pellets and similar materials.
The screen shaker has a capacity of approx. 30 kg of sample. To be use with 667x452x67 mm dimension screens.
The shaker has 5 screens and 1 pan capacity.
PRS-GHCSS0310 model is time-controlled Various sized wowen wired from 100 mm (4”) to 4 mm (no.5) or perforated plate from 125mm to 5.6mm screen
trays are available on request.
PRS-GHCSS0316 Soundproof Safety Cabinet is manufactured from sheet steel lined internally with soundproofing material to reduce noise and for
protection from dust.
*** Screen trays and Soundproof Safety Cabinet (PRS-GHCSS0316) should be ordered separately.
The PRS-GHCSS0310 is supplied complete with;
Pan (PRS-GHCSS0315)
TECHNICAL SPECIFICATIONS
| SCREEN SHAKER | |
| Dimension | 587x787x850 mm |
| Weight (approx.) | 170 kg |
| Power | 550 W |
| SCREEN TRAYS | |
| Dimensions | 667x452x67 mm |
| Weight (approx.) | 7 kg |
