Product description

Product Code	Product Description
PRS- HCTOV900	High Temperature Furnace  900 °C   ( For Universal Test Systems )

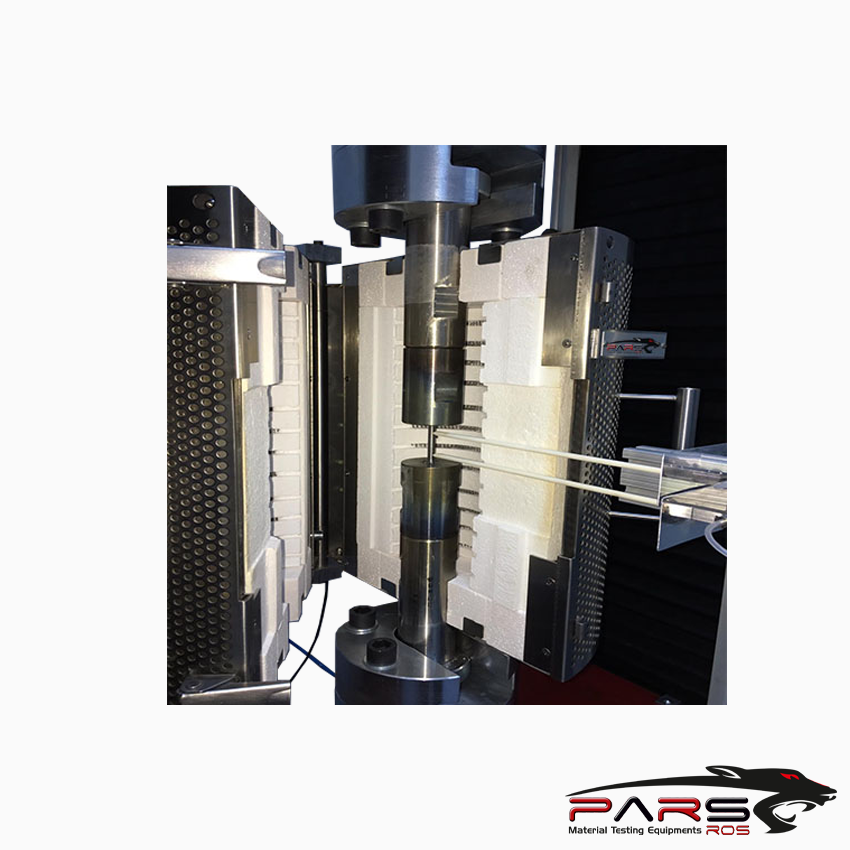

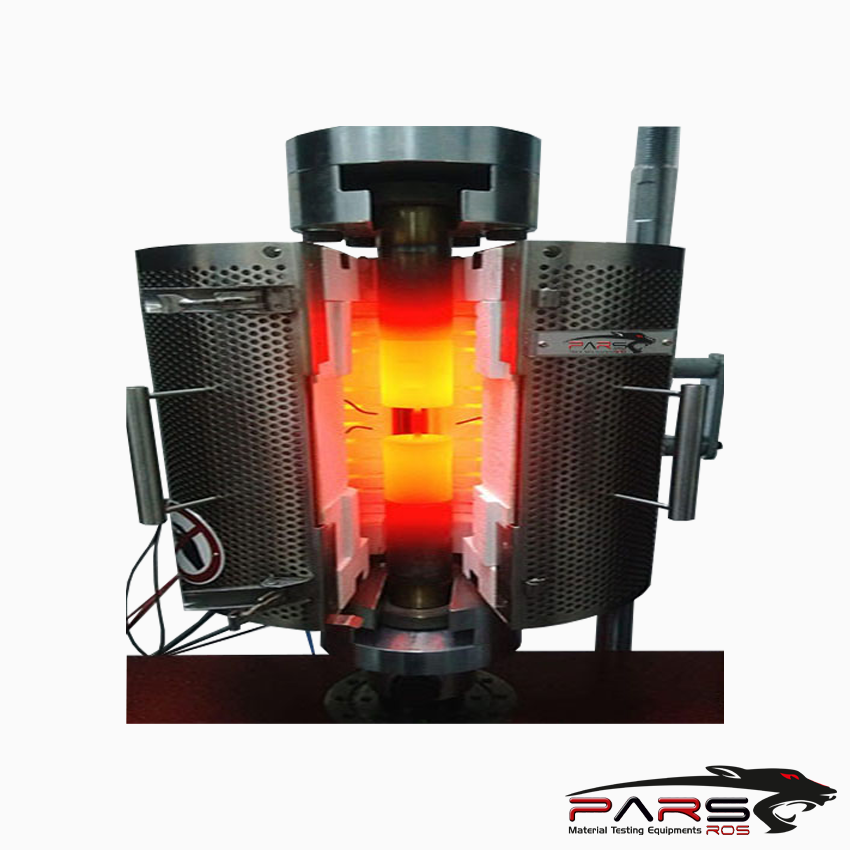

High Temperature Furnace 900 °C ( For Universal Test Systems )

It is  used in many laboratories around the world.

They are compatible with the Many Test System with many such as Fatigue Test, Endurance Test, Tensile Test or Compression Test.

Our furnaces can be used horizontally and vertically together with material testers.

Mounting apparatus is provided by us as necessary to integrate the device into the system.

The PRS-HCTOV900 Model Furnace is mainly suitable for use in the air in heating conditions up to 800 ° C for the determination of the hot elastic

behavior of materials and their high thermal strength

---

TECHNICAL SPECIFICATIONS

Good temperature homogeneity due to 3 heating zones, which can be controlled independently of each other with the appropriate temperature control system

Light weight, heat insulation material

Case made of stainless steel

Our High Temperature Furnace is prepared to put the

Lateral High Temperature-Display

Temperature Range	Ambient Temperature 900 °C
Heating rate	Max. 20K per minute
Power	Approx. 0,5 kW, 0,6 kW, 0,6 kW per Zone / 3 x 34 V, 50 Hz
