Product description
| Product Code | Product Description |
| PRS-ASFSADBP40 | Semi-Automatic Digital Bitumen Penetrometer 220-240 V 50-60 Hz |
| PRS-ASFSADBP40/110 | Semi-Automatic Digital Bitumen Penetrometer 110 V 60 Hz |
| PRS-ASFSADBP41 | Transfer Dish |
| PRS-ASFSADBP42 | Sample Cup, Ø 55×35 mm, stainless steel |
| PRS-ASFSADBP43 | Sample Cup, Ø 70×45 mm, stainless steel |
| PRS-ASFSADBP44 | Penetration Needle, 2,5 g |
| PRS-ASFSADBP60 | One-Quarter Scale Cone and Shaft, ASTM D 1403 and D 1831, |
| PRS-ASFSADBP61 | One-Half Scale Cone and Shaft, ASTM D 1403 and D 1831, |
| PRS-ASFSADBP62 | Penetrometer Cone ASTM D 217 (Optional Type) and ASTM D 937, Brass |
| PRS-ASFSADBP63 | Resilience Ball Penetration Tool. ASTM D5329, |

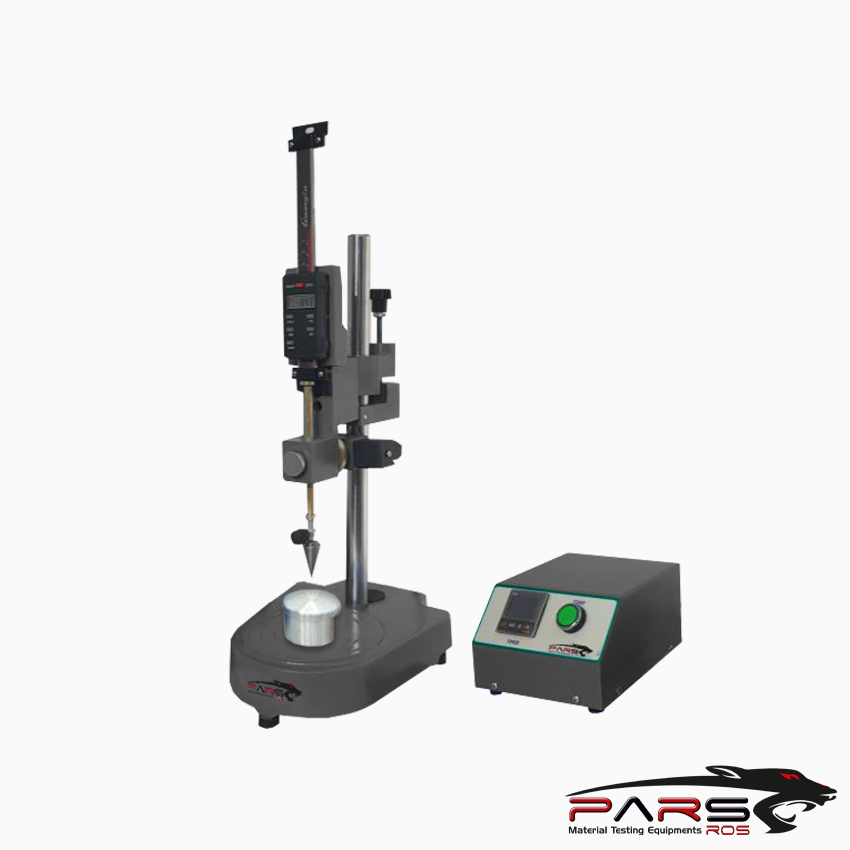

Semi-Automatic Digital Bitumen Penetrometer
STANDARDS : EN 1426; ASTM D5; AASHTO T49
Semi-Automatic Digital Bitumen Penetrometer is used to determine the penetration of bituminous samples under constant load, time and temperature.
The Penetrometer consists of a cast iron base with coarse and fine levelling screws, a digital penetration measurement gauge 0.01 mm readability and a penetration
timer unit.
Start button of the penetration timer unit is used to release the plunger fitted with the needle to start the 5 seconds test.
*** A water bath (25±0,1 C) and a thermometer ( IP38, ASTM 17C or 63C ) required for the test should be ordered separately.
*** Semi-Automatic Digital Bitumen Penetrometer is supplied complete with;
Penetration Needle, 2,5g, 1 pieces
Transfer Dish
Sample Cup Ø 55×35 mm, 3 pieces, stainless steel
