Sand Replacement Test Sets

Sand Replacement Test Set is used for the determination of the degree of compaction on site.

STANDARDS : BS 1377:9, 1924:2

Product description

Product Code	Product Description
PRS-SSARTS0200	Sand Replacement Test Set 100 mm BS
PRS-SSARTS0201	Sand Pouring Cylinder 100 mm dia
PRS-SSARTS0202	Calibration Container
PRS-SSARTS0203	Metal Tray
PRS-SSARTS0210	Sand Replacement Test Set 150 mm BS
PRS-SSARTS0211	Sand Pouring Cylinder 150 mm dia.
PRS-SSARTS0220	Sand Replacement Test Set 200 mm BS
PRS-SSARTS0221	Sand Pouring Cylinder 200 mm dia

Sand Replacement Test Sets

STANDARDS : BS 1377:9, 1924:2

Sand Replacement Set is used for the determination of the degree of compaction on site.

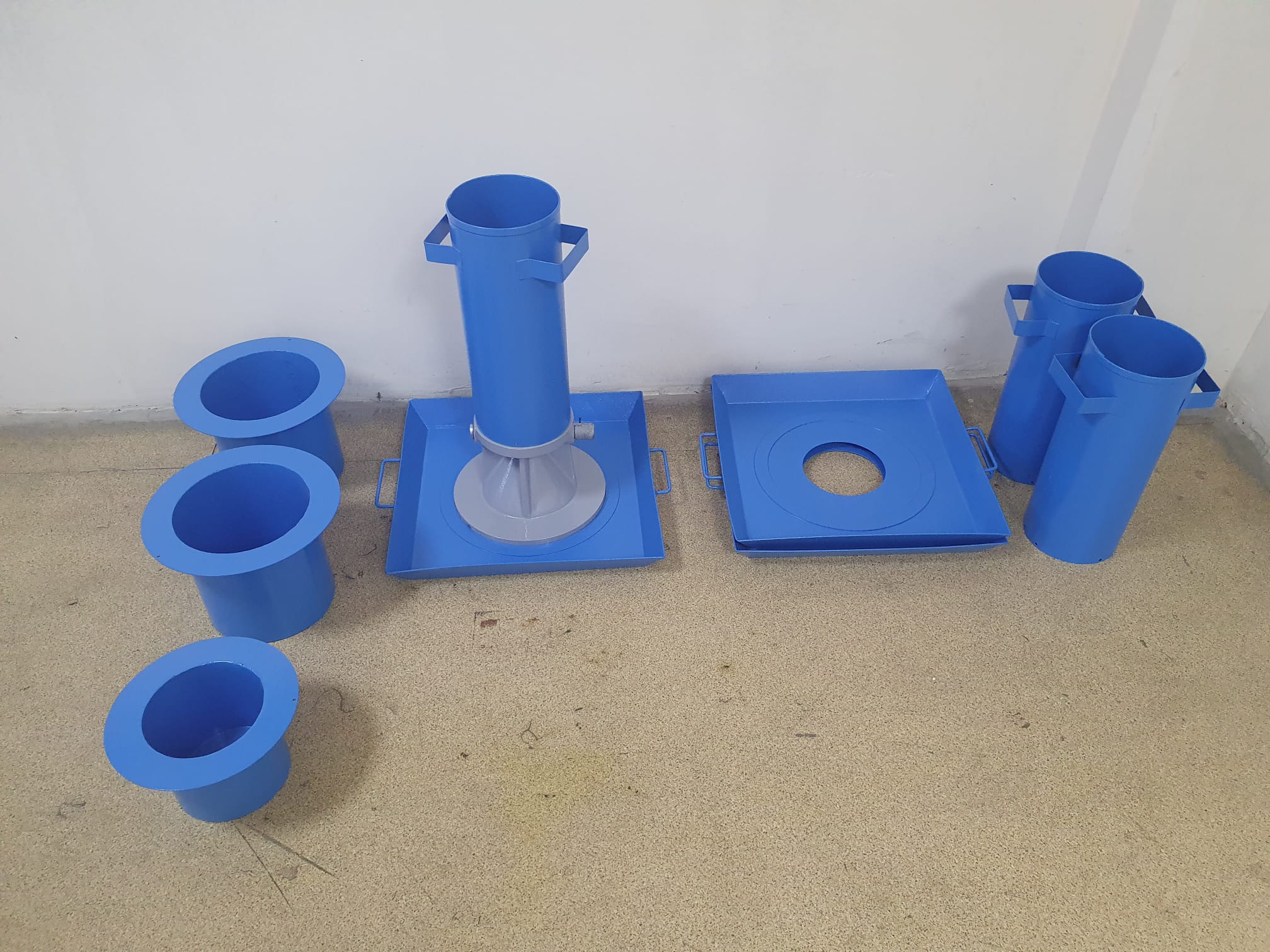

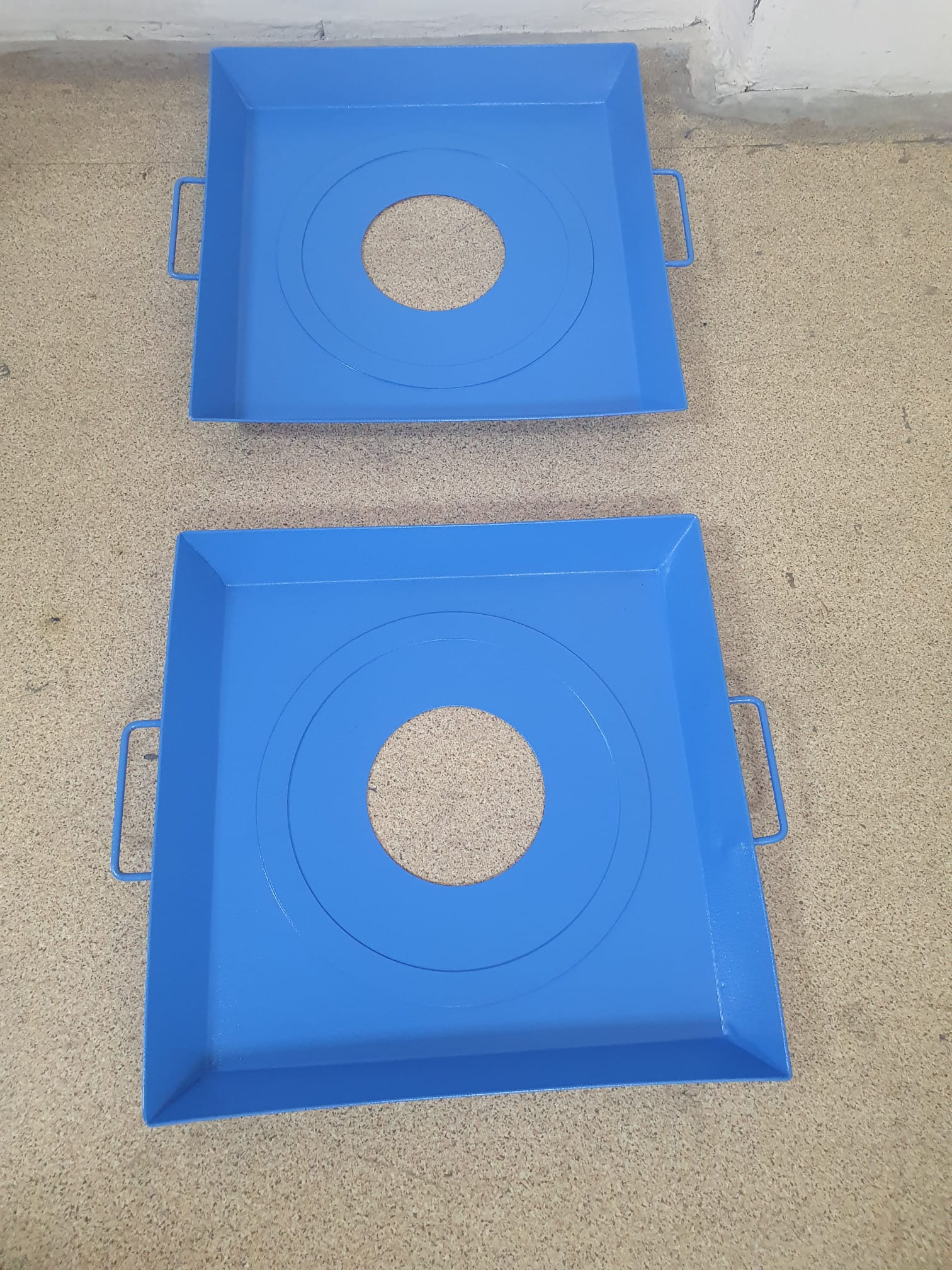

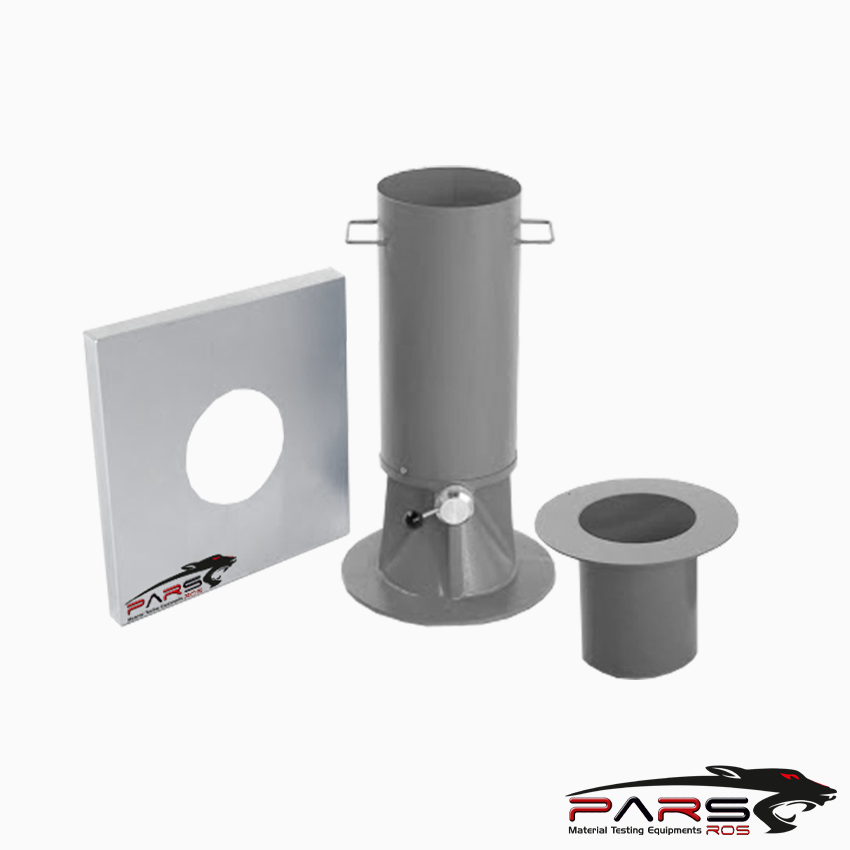

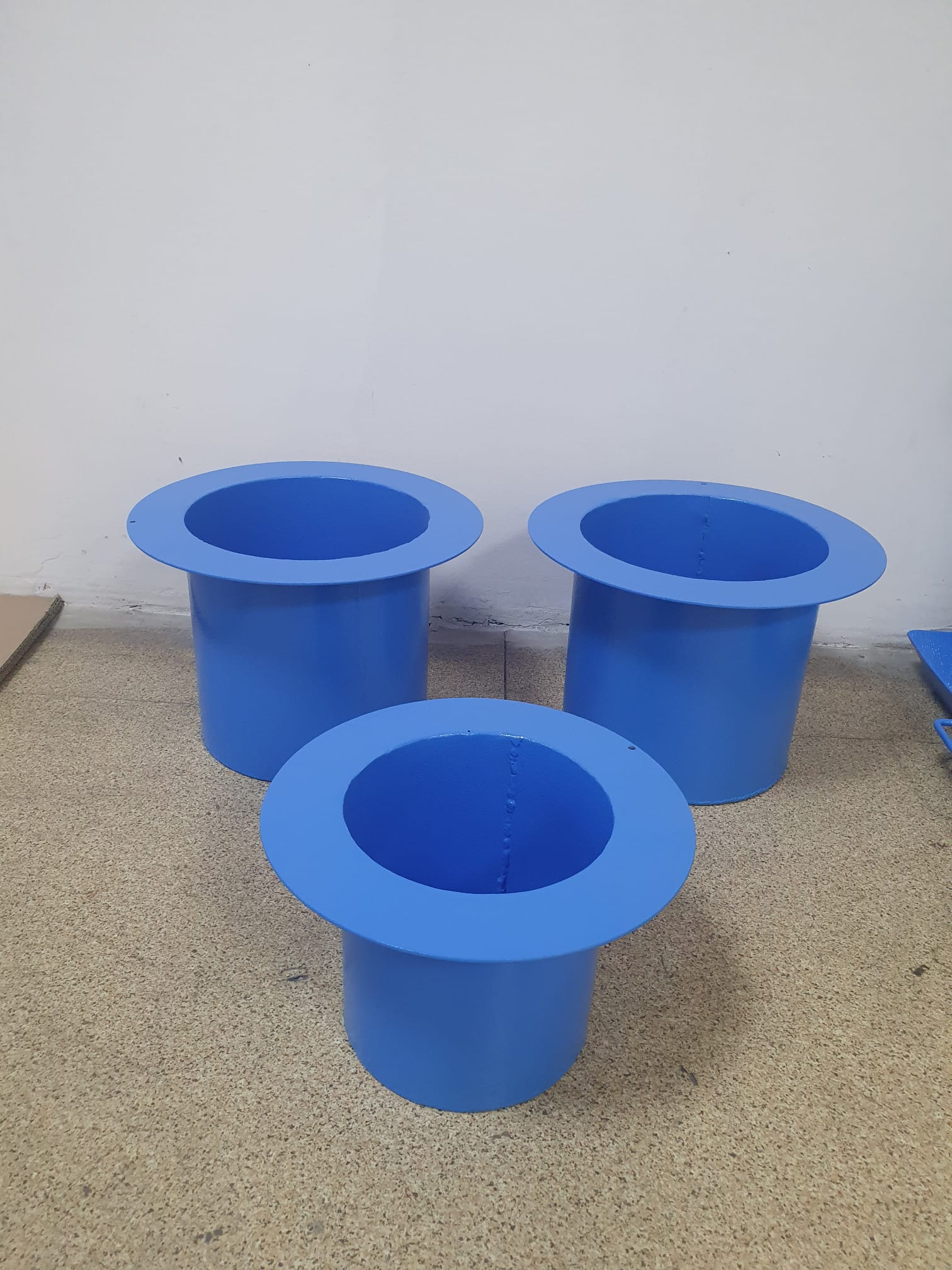

The Complete set consists of a pouring cylinder, calibration container and tray.

The sand pouring cylinder is made of cast aluminum and precisely machined; the calibration container and tray are made of plated sheet steel.

*** The test set is available in three different sizes.

TECHNICAL SPECIFICATIONS
