Product description

Product Code	Product Description
PRS-CEMMO22	Three Gang Cement Mould 40 x 40 x 160 mm, Steel
PRS-CEMMO25	Feed Hopper 40 x 40 x 160 mm
PRS-CEMMO23	Short and Long Spreaders and Straightedge

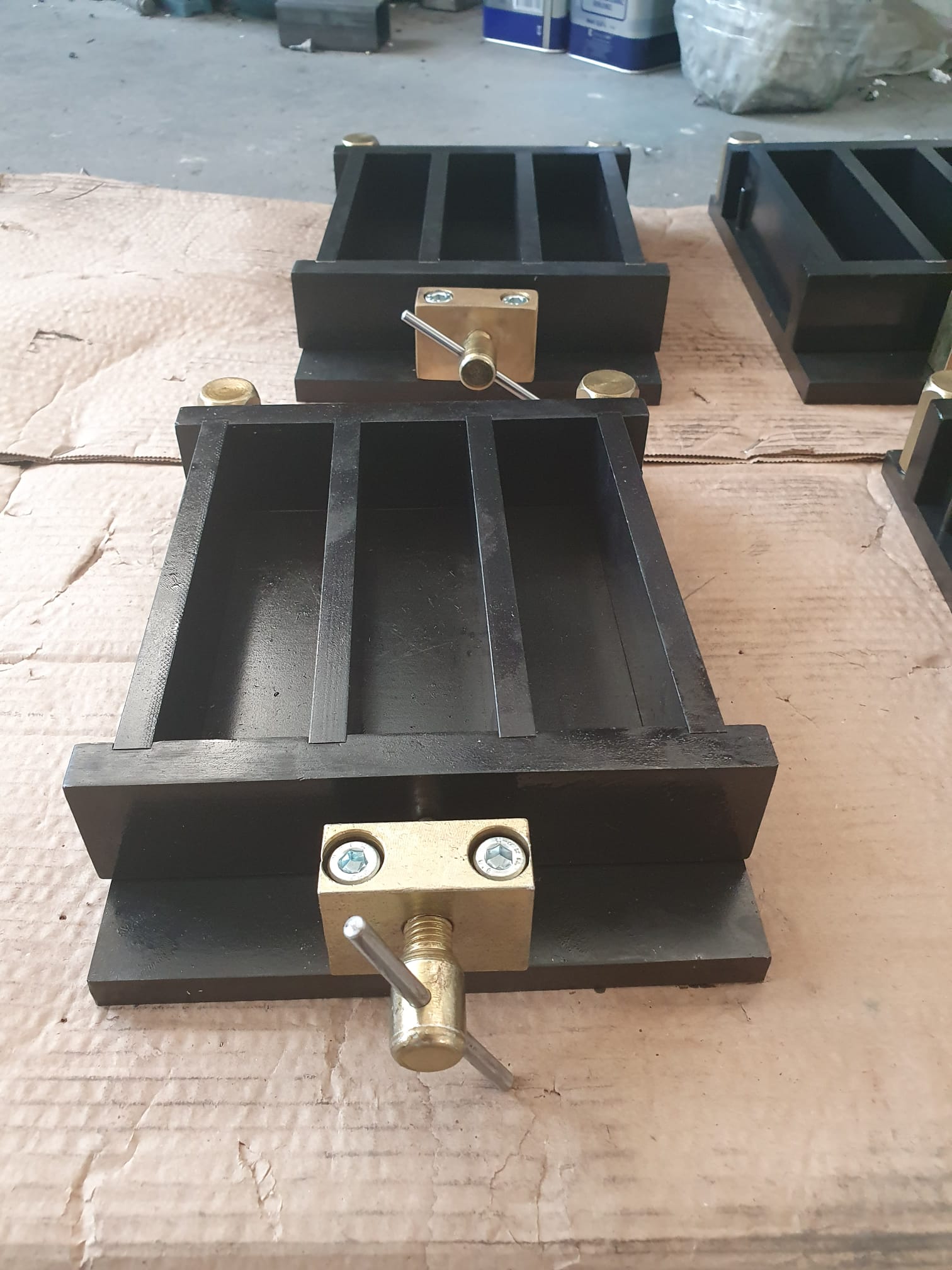

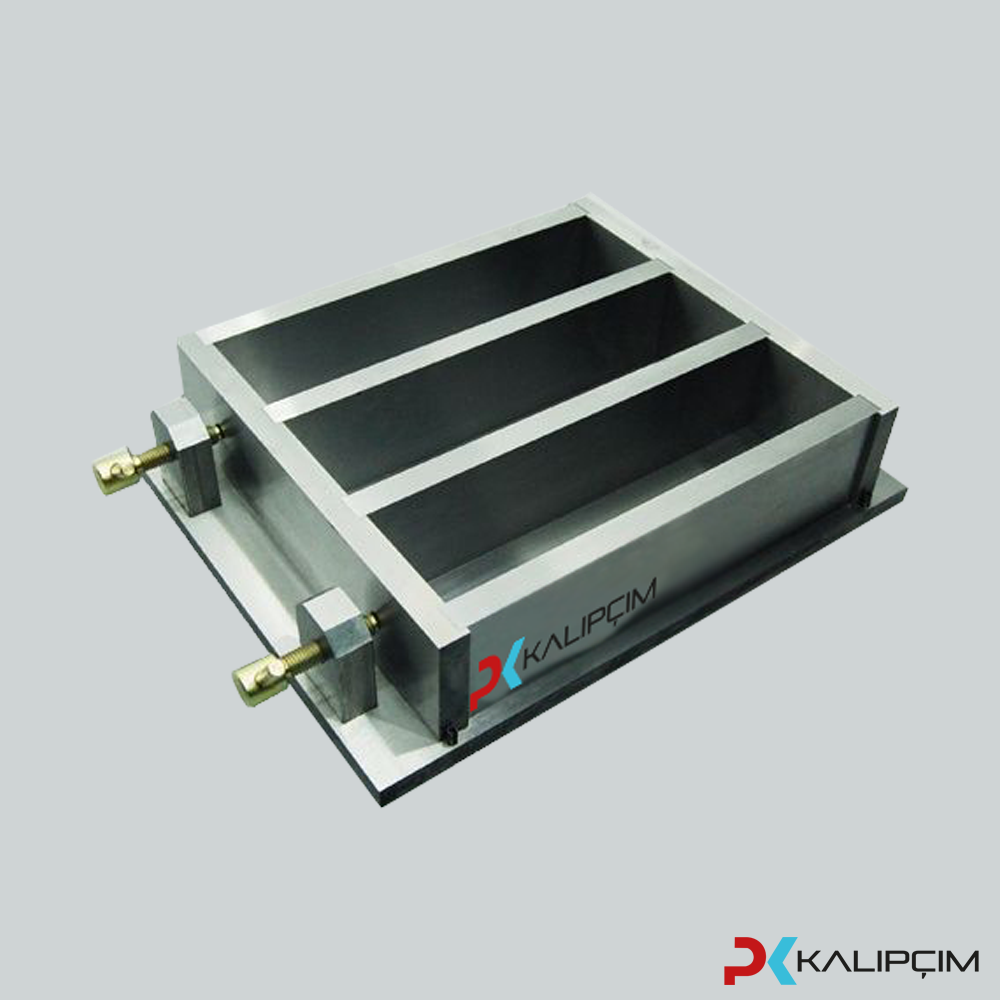

Three Gang Cement Mould , 40 x 40 x 160 mm, Steel

STANDARDS : EN 196-1; ASTM C109; BS 4550

Three Gang Cement Mould ,40 x 40 x 160 mm, Steel is used for the determination of linear shrinkage/expansion of cement mortar when used together with the Length Comparator.

All moulds have been manufactured from steel and all internal surfaces are machined.

All dimensions and specifications comply with the related standards.

The 40x40x160 mm  mould has the surface hardness to a minimum HV400.

*** Reference Rod should be ordered separately.

---

TECHNICAL SPECIFICATIONS

Dimensions	PRS-CEMMO22	40 x 40 x 160 mm
	PRS-CEMMO23	210x200x40 mm
	PRS-CEMMO25	110x230x60 mm
Weight (approx.)	PRS-CEMMO22	12 kg
	PRS-CEMMO23	2 kg
	PRS-CEMMO25	3 kg
