Product description

Product Code	Product Description
PK – PM01	One Gang Cement Prism Mould, 1″ x 1″ x 10 ″ (25 x 25 x 254 mm)

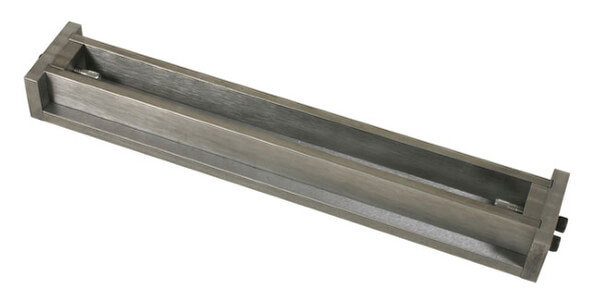

One Gang Cement Prism Mould 1 x 1 x 10 ” ( inch )

STANDARDS:  ASTM C227 , ASTM C1260 , ASTM C1012/1012M , ASTM C151/151M , ASTM C157/157M , ASTM C490/490M , AASHTO R 70M/R 70 , AASHTO T 107M/T 107

Cement  Prism,( One Gang  ) 1 x 1 x 10 in (25 x 25 x 254 mm)  10in effective gauge length prism test bars.

Testing applications include potential alkali reactivity, expansion, and volume, length, and linear change.

It is also used with a Length Comparator to measure Portland cement paste, mortar, and concrete prism samples.

The mold has a base plate, removable partitions and end plates constructed of corrosion-resistant steel to provide required length of 10in (254mm) between ends of Gage

Studs cast in ends of bars.

Dimensions from outside end of gage studs are 11.625in (296mm) with specimen cross sections of 1x1in (25x25mm).

---

Features

Made of  steel

Suited for testing different types of concrete material
